Ultrasonic Car Bumper Welding Machine Design for High-Precision Automotive Manufacturing

Introduction

In the automotive industry, plastic welding quality directly impacts product strength, dimensional accuracy, and overall vehicle appearance. As production volumes continue to increase, manufacturers require automated welding systems capable of delivering consistent weld quality while minimizing operator dependency.

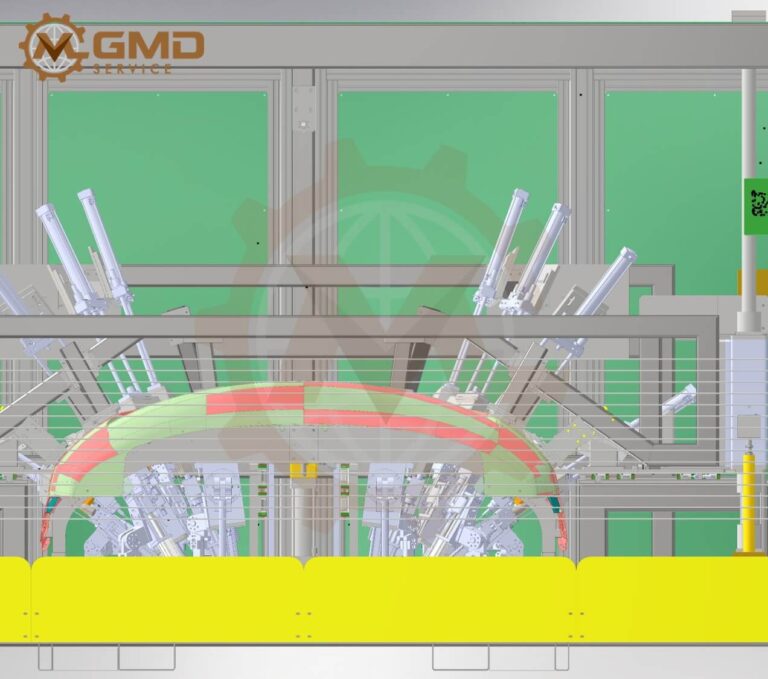

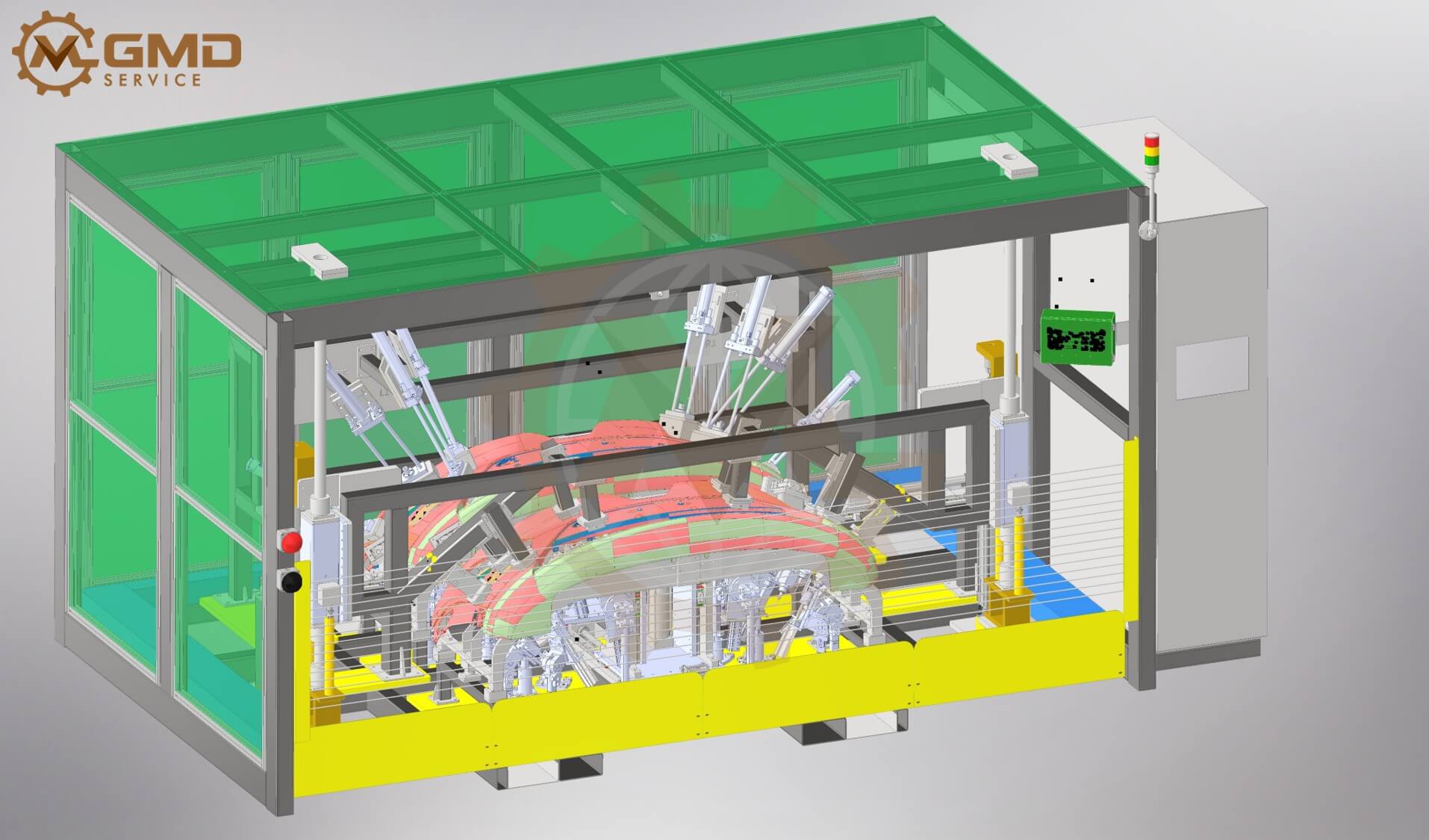

To address these requirements, Global Machine Design Services (GMD) developed a custom Ultrasonic Car Bumper Welding Machine designed for high-volume production. The system combines precision positioning, multi-stage ultrasonic welding, and automated indexing to achieve repeatable, high-quality welds across multiple welding locations on each bumper.

Project Overview

The objective of this project was to design a dedicated ultrasonic welding machine capable of welding multiple plastic joints on an automotive bumper within a single automated cycle.

Due to the bumper’s large size and complex geometry, welding all locations simultaneously was not practical. Instead, the machine indexes the product through three welding stations, allowing all 24 welding points to be completed while maintaining high positional accuracy and consistent weld quality.

The engineering scope included:

• Complete mechanical design
• Machine frame
• Precision bumper fixture
• Indexing transfer mechanism
• Ultrasonic horn mounting structure
• Pneumatic clamping system
• Safety guarding
• Manufacturing drawings
• Assembly drawings
• Bill of Materials (BOM)

Technical Specifications

Customer Requirements

The customer required a welding system capable of:

• Producing consistent ultrasonic weld quality
• Maintaining high positional accuracy
• Preventing bumper deformation during welding
• Supporting continuous production
• Reducing manual operations
• Improving production efficiency
• Ensuring reliable fixture positioning

Engineering Challenges

High Welding Position Accuracy

One of the most critical engineering challenges was ensuring precise alignment between the ultrasonic welding heads and every welding feature on the bumper.

Any positional deviation could result in:

• Incomplete welds
• Weak joints
• Surface defects
• Cosmetic damage
• Increased scrap rate

To achieve the required accuracy, the fixture and indexing mechanism were designed with high repeatability and rigidity.

Uniform Welding Pressure

Ultrasonic welding requires not only accurate positioning but also consistent contact pressure.

If the applied force is too low, the weld becomes weak and incomplete.

If the force is too high, the plastic surface may deform or become damaged.

The machine structure was designed to maintain stable welding pressure throughout every welding cycle.

Preventing Product Movement

Automotive bumpers have relatively large dimensions and flexible plastic structures.

Without proper restraint, vibration generated during ultrasonic welding may cause the bumper to shift, resulting in poor weld quality.

To eliminate this risk, pneumatic hold-down cylinders clamp the bumper securely before each welding operation begins.

This ensures:

• Stable positioning
• Reduced vibration
• Improved weld consistency
• Protection against product damage

Machine Operating Sequence

The welding process follows a fully automated sequence.

Step 1 – Manual Product Loading

The operator places the bumper onto the precision locating fixture.

The fixture is designed to ensure fast loading while maintaining accurate positioning.

Step 2 – Pneumatic Clamping

Before welding begins, pneumatic cylinders descend to clamp the bumper firmly against the fixture.

This prevents product movement caused by ultrasonic vibration and ensures stable welding conditions.

Step 3 – First Welding Station

After the operator presses the Start button, the indexing mechanism moves the fixture to the first welding position.

The first station performs ultrasonic welding on 12 welding points simultaneously.

Step 4 – Second Welding Station

Once the first welding cycle is completed, the fixture automatically indexes to the second station.

An additional 6 welding locations are completed.

Step 5 – Third Welding Station

The fixture then moves to the final welding station.

The remaining 6 welding points are welded, completing all 24 weld locations required for the bumper.

Step 6 – Product Unloading

After all welding operations are finished, the clamps are released and the operator removes the completed bumper for the next production process.

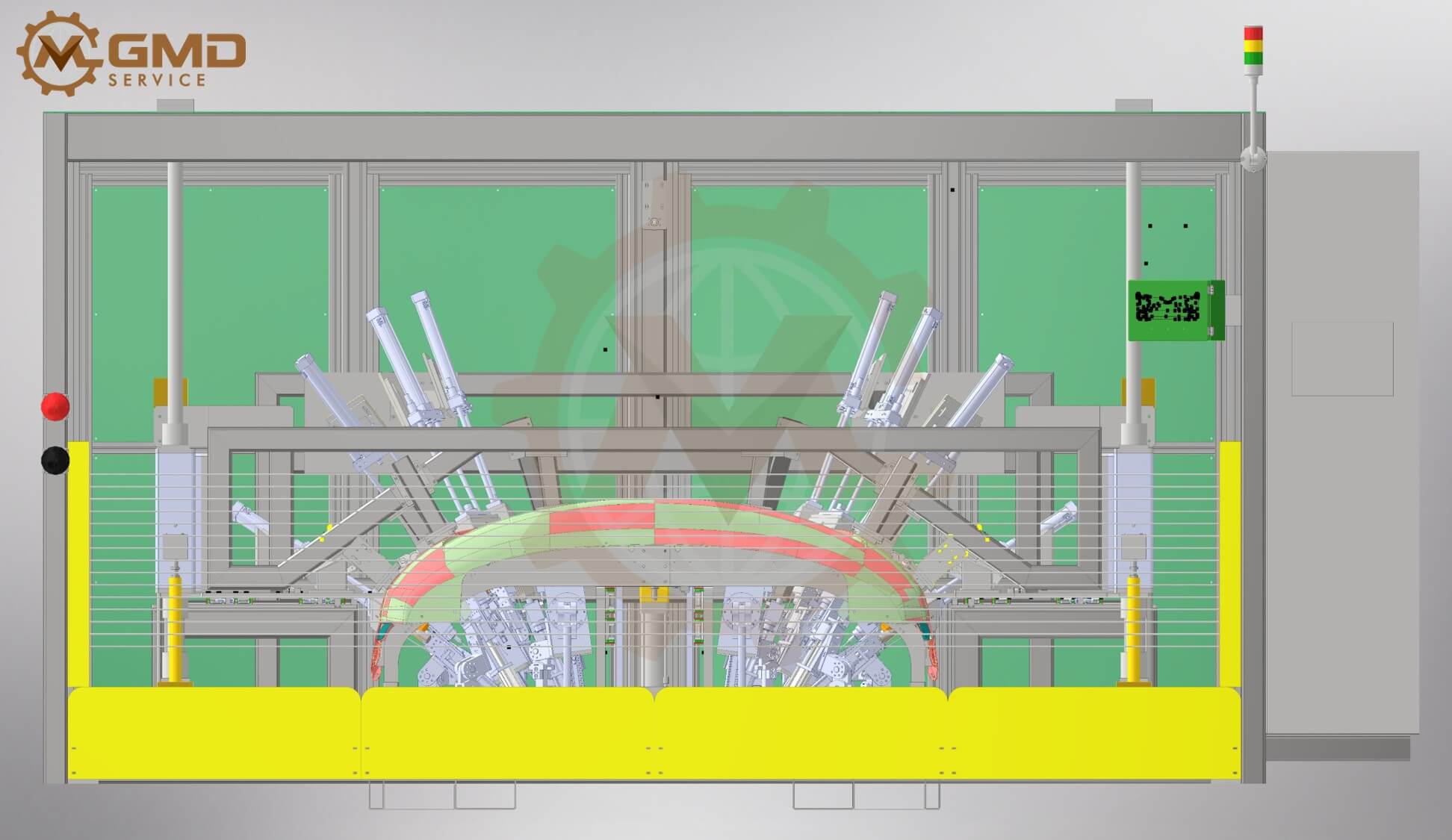

Mechanical Design Features

The machine incorporates several precision mechanical systems:

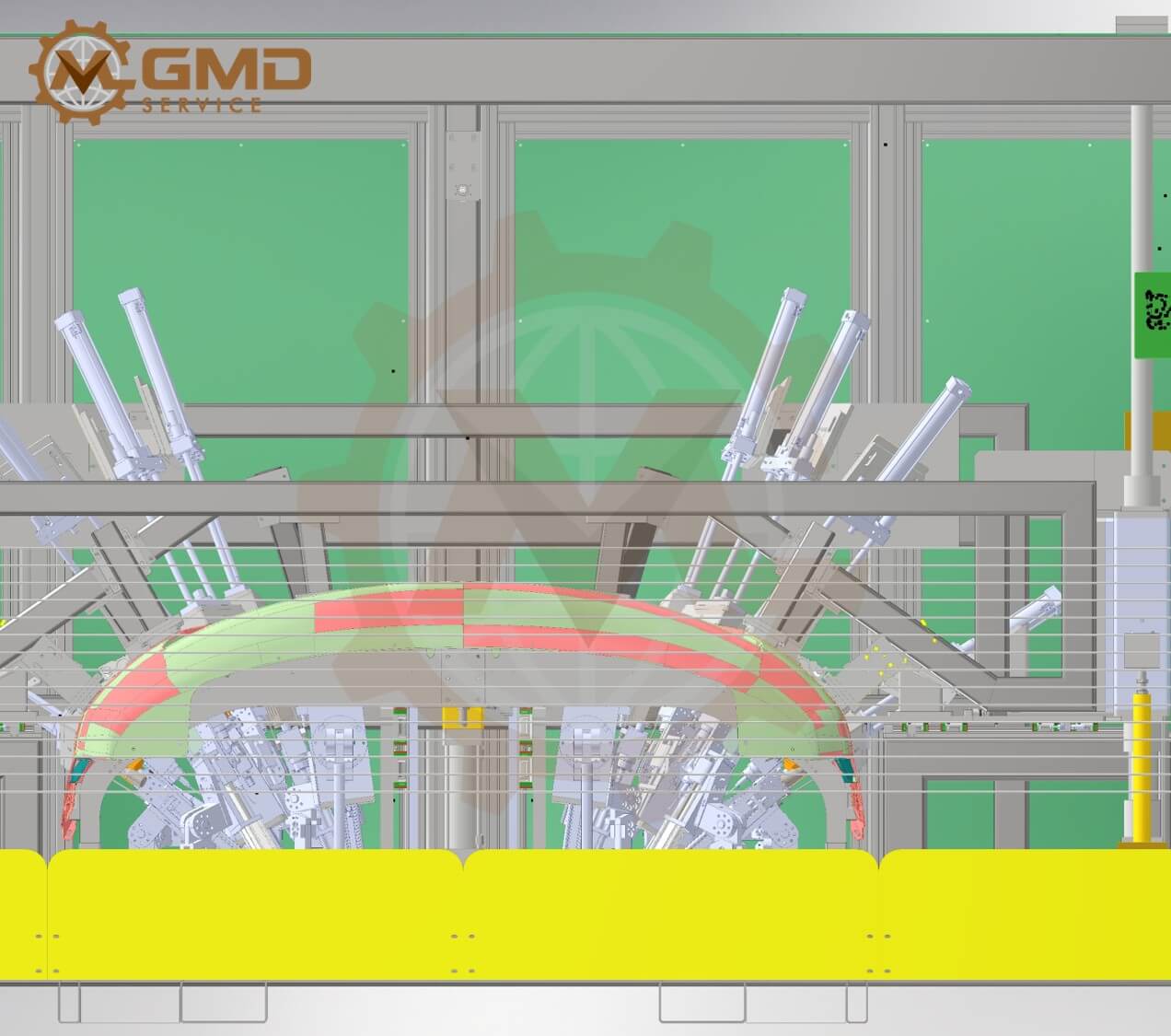

Precision Bumper Fixture

A dedicated locating fixture ensures repeatable positioning for every bumper.

The fixture minimizes loading variation while supporting rapid production.

Automatic Indexing Mechanism

Instead of moving multiple welding heads across the product, the bumper fixture indexes between three fixed welding stations.

This solution offers:

• Higher positioning accuracy
• Simplified machine structure
• Easier maintenance
• Better long-term reliability

Pneumatic Clamping System

Multiple pneumatic cylinders secure the bumper before each welding cycle.

The clamping system prevents vibration-induced movement while protecting the plastic component from deformation.

Modular Welding Head Mounting

The welding head support structure was designed using a modular concept.

Benefits include:

• Easier alignment
• Faster maintenance
• Simplified replacement
• Future expansion capability

Engineering Deliverables

The customer received a complete engineering package including:

• Full 3D CAD Assembly
• Manufacturing Drawings
• Part Drawings
• Assembly Drawings
• Weldment Drawings
• Bill of Materials
• Installation Documentation
• Mechanical Design Documentation

Software Used

This project was developed using:

• Autodesk Inventor 2023
• Sheet Metal Design
• Frame Generator
• Weldment Environment
• Assembly Modeling
• Drawing Environment
• BOM Automation

Benefits of the Solution

Compared with manual welding processes, the automated ultrasonic welding machine provides:

• High welding consistency
• Excellent positional accuracy
• Improved product quality
• Reduced operator dependency
• Faster production cycles
• Stable welding pressure
• Lower scrap rates
• Easier maintenance
• Higher production efficiency

Typical Applications

This machine architecture can be adapted for various plastic welding applications, including:

• Automotive bumpers
• Automotive interior trim
• Door panels
• Dashboard assemblies
• Plastic reservoirs
• Electronic housings
• Consumer plastic products
• Medical plastic components

Why GMD Engineering

At Global Machine Design Services, we specialize in designing custom automation equipment tailored to each customer’s production requirements. Our expertise includes precision fixtures, automated transfer mechanisms, ultrasonic welding equipment, and manufacturing-ready mechanical designs that support efficient, high-volume production.

Conclusion

This Ultrasonic Car Bumper Welding Machine demonstrates how precision mechanical engineering can significantly improve welding consistency, productivity, and manufacturing quality in the automotive industry.

By combining accurate product positioning, automated indexing, controlled clamping force, and multi-stage ultrasonic welding, the system achieves reliable weld quality while maintaining a production cycle of 55 seconds per bumper.

At Global Machine Design Services, we deliver complete mechanical design solutions—from concept development and 3D CAD modeling to manufacturing documentation—helping manufacturers build reliable, scalable, and production-ready automation systems.
